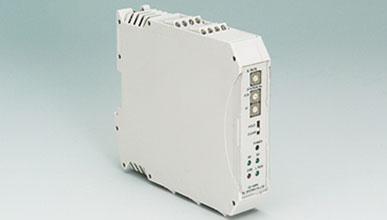

Power Controller (CC-Link Compatible)
This is an SSR power controller which realized phase control by PLCs and multipoint cycle control.
Outline
The CC-SSR4 is a SSR power controller compatible to CC-Link for field networks, where system configurations are increasing centered on programmable logic controllers (PLC) which play a main role in various applications in industrial equipment and production facilities.
An SSR can be used as a power controller by the serial signal from a PLC, and performs phase control and cycle control by simply changing the data.
Up to 4 SSRs can be connected to 1 controller, which is useful in reducing the wiring of a system.
Features
- - 1 controller can control up to 4 SSRs
- - Realizes optimal control (phase control and cycle control) by an SSR through serial data from a PLC using CC-Link
- - An SSR can be selected according to the application, which realizes space-saving and low cost compare to conventional power controllers
Specifications
*To open PDF files, Adobe Reader is required.
Specifications | CC-SSR4 | |
---|---|---|
Controller Specifications | ||
Characteristics | Remarks | |
Channel type | Remote I/O channel | |
Number of channels | 1 channel | SSR1-4 (Open collector output) |
Power supply voltage | 24V±10% | |
SSR drive voltage | 30V or less | SSR1-4 (Open collector output) |
SSR drive current | 100 mA or less (Per output) | SSR1-4 (Open collector output) |
Voltage drop when SSR drive terminal turns ON | DC1V or less (at 100mA) | |
Leakage current when SSR drive terminal turns OFF | DC 0.1mA or less (at 30VDC) | |
Power control range | 0~100% | SSR1-4 (Open collector output) |
AC voltage input range | AC85~264Vrms | * Between AC1 to AC2 |
AC voltage frequency range | 50Hz:47~53Hz/60Hz:57~63Hz | * Automatic distinction for 50/60 Hz |
Operating temperature range | 0 to 60 º C (However, no freezing) | |
Operating humidity range | 35 to 85%RH (However, no condensation) | |
Insulation resistance | 100MΩ or more | (Between primary - secondary) |
Withstand pressure between input/output | AC 2500Vrms | (Between primary - secondary) |
Weight | About 150g | |
RoHS compliant | ○ | |
Communication Specifications | ||
Communication speed | 10M/5M/2.5M/625K/156K | |
Communication method | Broadcasting polling method | |
Synchronous method | Frame synchronous method | |
Encoding method | NRZI | |
Transmission path format | Bus format (EIA RS485 compatible) | |
Transmission format | HDLC compatible | |
Error control method | CRC(X16+X12+X5+1) |
* For details on CC-Link, refer to the Mitsubishi Electric Corporation's catalog and Instructions Manual.
